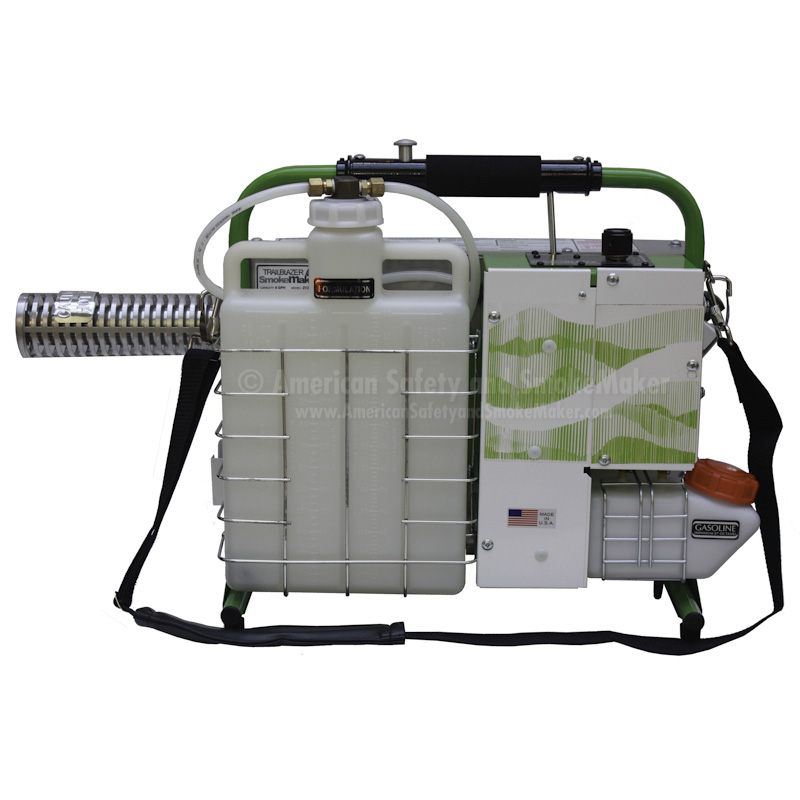

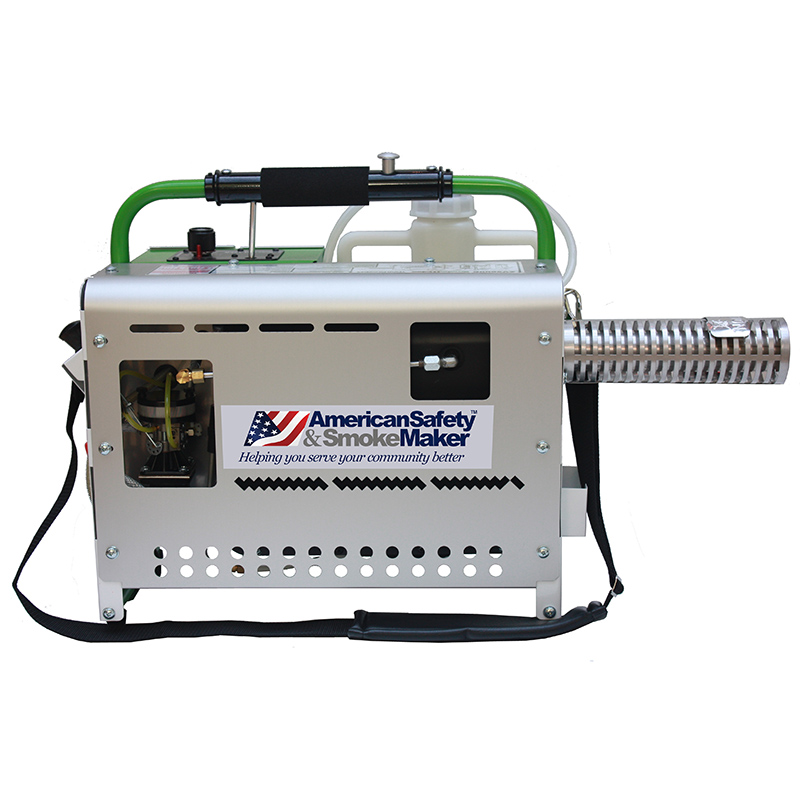

    The ZV2600 SmokeMaker

    The ZV2600 SmokeMaker produces 31,700 cubic feet (900 cubic meters) of effective output per minute.

    Dispense either petroleum or water-based smoke fluid.

    NOTE We HIGHLY recommend petroleum fluid with the ZV2600 the resulting fog is DRAMATICALLY thicker, dryer and more effective.

    ZV2600 Features

    • One year warranty
    • Gas Powered, no external power needed.
    • Dispense either petroleum or water-based smoke fluid.
    • Easy 12-volt starting system
    • Virtually no carbon monoxide
    • All serviceable parts are exposed & visible for easy access
    • Competitive output comparison: 30,000+ cfm

    ZV2600 Output

    • Smoke Output: 30,000 plus cubic feet
    • Formulation Output: 0-5 gal/hr, or 0-19 liters/hr.

    ZV2600 Construction

    • Type: Thermal aerosol-fog, resonant pulse principle.
    • Produces 31,700 cubic feet (900 cubic meters) of effective output per minute.
    • Engine Performance: 24 Hp, or 18 KW, or 15,100 Kcal/hr.
    • Fuel Consumption: 0.3 GPH or 1.1 liters/hr
    • Weight (Empty): 25 lbs. or 11.3 kg
    • Weight (Full): 37 lbs. or 16.8 kg
    • Fuel tank capacity: 0.85 qts or 0.8 liters
    • Formulation Tank capacity: 1 gallon or 3.8 liters

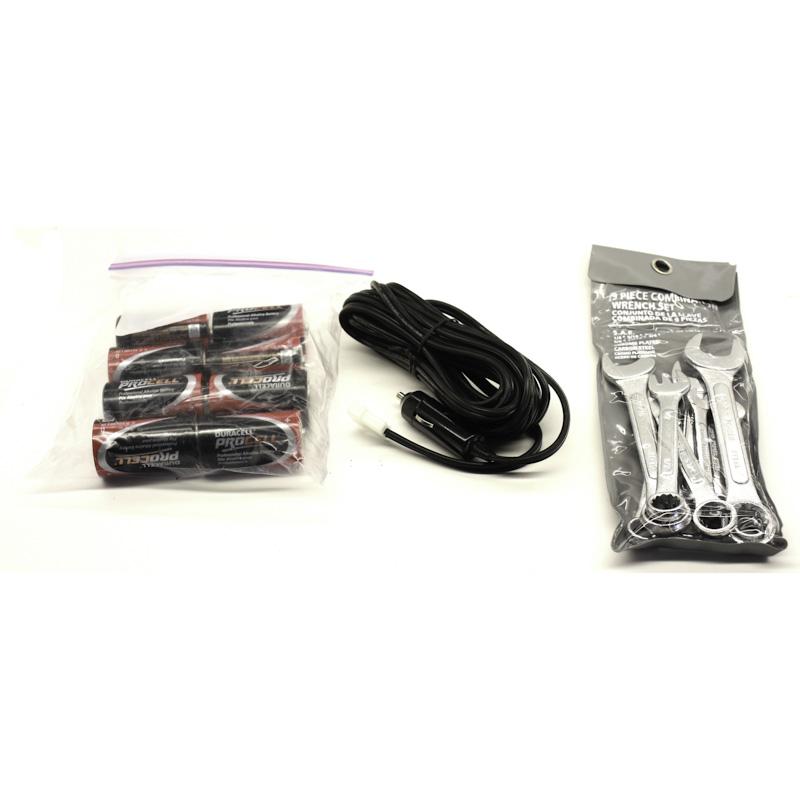

    • Power Supply: Eight 1.5 V "D" size alkaline batteries
      or an automobile cigarette lighter adapter
      or another 12 VDC auxiliary power source.

    ZV2600 Dimensions

    • Length: 32 in or 81.28 cm.
    • Width: 13 in or 33.02 cm
    • Height: 20 in or 50.08 cm
    • Fog Particle size: 0.5 - 50 microns (mass meridian diameter)
    • Shipping data: L x W x H: 32 x 14 x 21 (in) or 81 x 36 x 53 (cm)
    • Weight: 41 lbs. or 18.6 kg
    • Volume: 5.44 cu. Ft or 0.154 cu. M.

    Trailblazer ZV2600 Instruction Manual
